NL668 NL668-EAU NL668-EU/AM 4G LTE Cat4 Module 150Mbps MiniPCIe

NL668-E MiniPCIe LTE-module Technische specificaties

NL668 NL668-EAU NL668-EU/AM 4G LTE Cat4 module 150Mbps Mini PCIe B1/B3/B5/B7/B8/B20/B28/B38/B40/B41 compatibel EC25-E

Algemene kenmerken

Afmeting ((mm):30.00 x 51.00 x 4.90

Pakket:Mini-PCIe

Stroomvoorziening:3.3V~4.2V

Werktemperatuur: -40°C tot +85°C

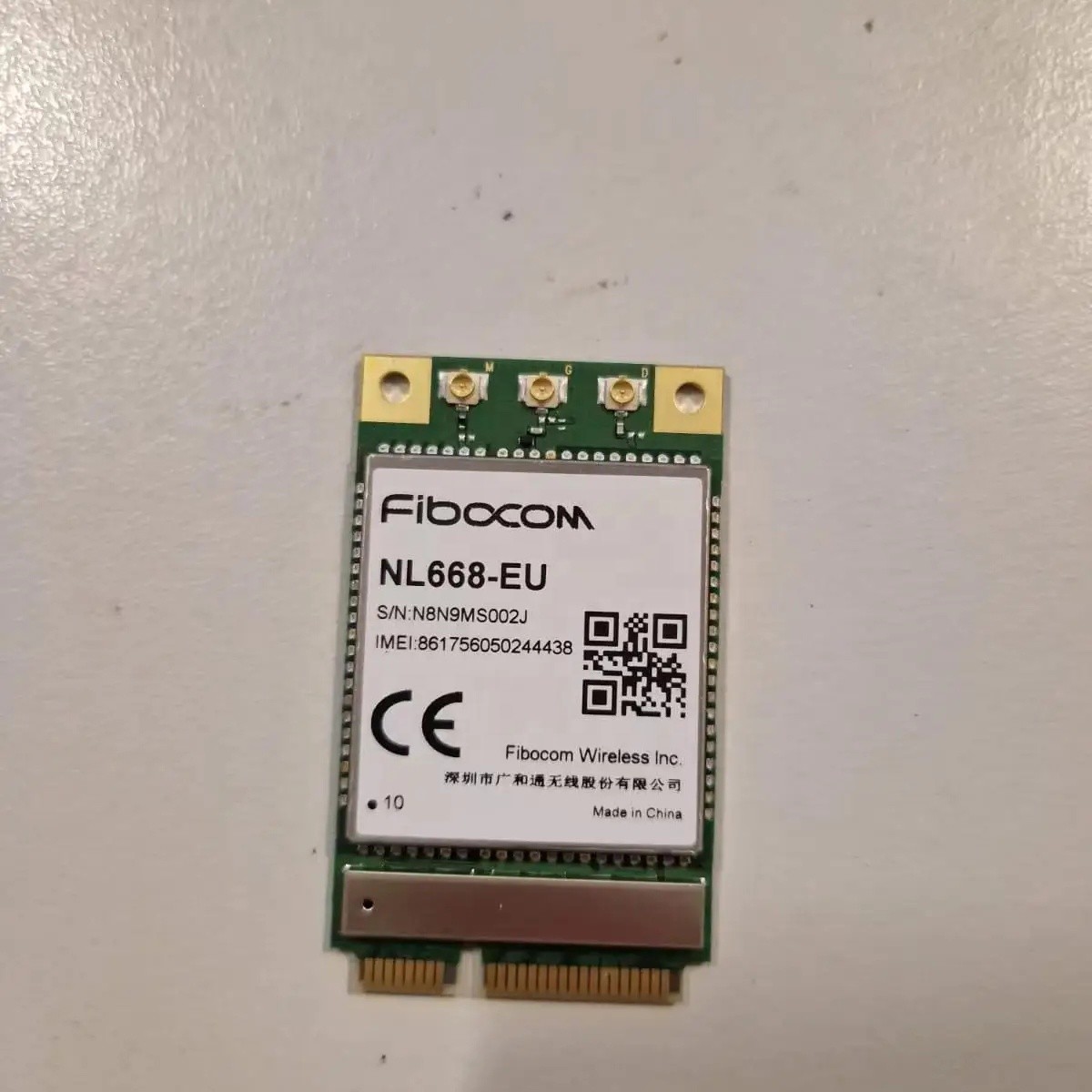

NL668-EU MiniPCIe

LTE FDD:B1/B3/B5/B7/B8/B20

LTE TDD:B38/B40/B41

WCDMA:B1/B5/B8

GSM/GPRS/EDGE:850/900/1800MHz

NL668-EAU MiniPCIe

LTE FDD:B1/B3/B5/B7/B8/B20/B28

LTE TDD:B38/B40/B41

WCDMA:B1/B5/B8

GSM/GPRS/EDGE:850/900/1800MHz

NL668-AMMiniPCIe

LTE FDD:B2/B4/B5/B12/B13/B66/B71

WCDMA:B2/B4/B5

Interface:

SIM:x 1, 1,8V/3,0V

USB2.0:x 1

UART: x 1

ADC: x 2

Gegevens:

LTE FDD ((Mbps):150 ((DL)/50 ((UL))

LTE TDD ((Mbps):130 ((DL)/35 ((UL)

DC-HSPA+(Mbps):42(DL)/5.76(UL)

HSPA/HSPA+(Mbps):21(DL)/5.76(UL)

UMTS(kbps):384(DL)/384(UL)

TD-SCDMA ((Mbps):4.2 ((DL) /2.2 ((UL)

EDGE(kbps):236.8 ((DL)/236.8 ((UL)

GPRS ((kbps):85.6 ((DL)/85.6 ((UL)
